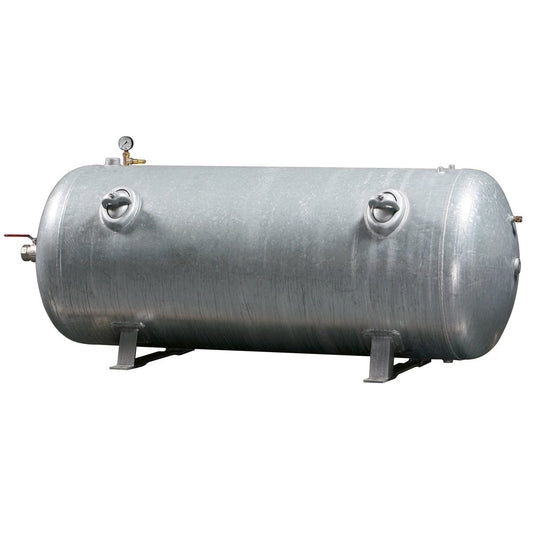

Compressed air tank type: 1000 l - horizontal design, galvanized
All pressure vessels (90-10,000 liters) fulfill important tasks in the compressed air station as storage and buffer media. They even out consumption peaks and often separate condensate. Proper tank sizing is important for efficient operation. Furthermore, high-quality corrosion protection is crucial for the operational safety and service life of the containers. The pressure vessels from KAESER KOMPRESSOREN meet all of these requirements first-class.
Technical specifications
- Compressed air tank volume: 1000 l
- max. overpressure: 11 bar(g)
- Operating temperature: -10°C to +50°C
- Acceptance of compressed air tank: RL 2014/68/EU
- Compressed air connections: 1 x G 1 1/2 / 1 x G 2
- Permissible media: nitrogen, air
- Condensate drain connection: G 3/4
- Maintenance openings according to AD 2000: 2 x hand hole
- Permissible load changes (0- HP): <=1000
- Permissible pressure fluctuation range for fatigue strength: 20% PS
- Permissible installation (outdoor installation on request): inside the building
- Diameter: 800mm
- Length without fittings: 2150 mm
- Mass: 244 kg
Technical changes reserved.
Tip: Use the appropriate fittings and condensate drain kit. (Optionally available)
Decisive product advantages
Long test intervals
The robust design according to the calculation specifications of the AD 2000 regulations makes test cycles of five years possible. The boilers are designed for a permanent pressure fluctuation of up to 20% of the maximum pressure. As a result, the test costs can be reduced and the economy can be increased.
Three times longer service life
Outstanding corrosion protection for all KAESER compressed air tanks is provided by hot-dip galvanizing on the inside and outside in accordance with DIN EN ISO 1461. Compared to conventional compressed air tanks, hot-dip galvanized KAESER compressed air tanks have a service life that is around three times longer.
Large maintenance opening
Cleaning, maintenance and tank inspection are faster thanks to the large maintenance openings. This also contributes to higher profitability.
