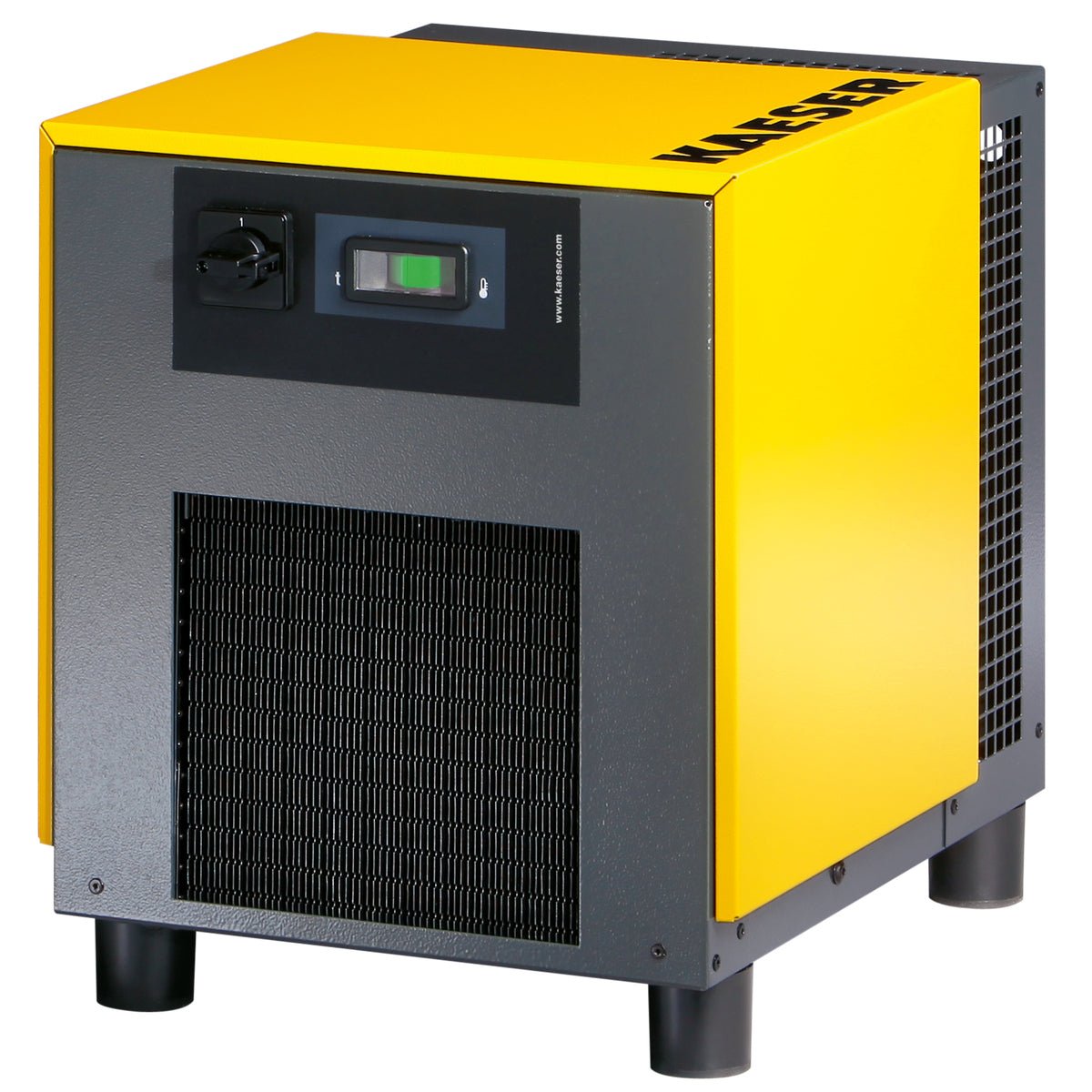

Refrigeration dryer KRYOSEC type: TAH 7 Refrigeration dryer with hot gas bypass control The TAH 7 refrigeration dryer from the KRYOSEC series works reliably even at high ambient temperatures. The reason for this is the coherent design of the refrigeration cycle. Other important properties of the refrigeration dryer are: high...
The TAH 7 refrigeration dryer from the KRYOSEC series works reliably even at high ambient temperatures. The reason for this is the coherent design of the refrigeration cycle. Other important properties of the refrigeration dryer are: high flow security, electronic condensate drain, stainless steel plate heat exchanger system with air/air heat exchanger and efficient condensate separator, low overall height and small footprint. Made in Germany.
Technical data (data under reference conditions according to ISO 7183 option A1: ambient temperature +25 °C, cooling medium inlet temperature +25 °C, compressed air inlet temperature +35 °C, pressure dew point +3 °C, operating pressure 7 bar; max. height of the installation site above sea level: 1000 m; the performance data will change under other operating conditions)
flow rate0.60 m³/min
Electrical power consumption at 100% volume flow0.16kW
pressure dew point3°C
Pressure loss refrigeration dryer0.13 bars
overpressure (min./max.)3.0 bar / 16.0 bar
Ambient temperature min./max.3℃/50℃
Compressed air connectionG 1/2
Condensate drain connectionG 1/4
Connected to the electricity grid230V / 1 / 50Hz
Dimensions (W x D x H)386mm x 473mm x 440mm
Dimensions24kg
Refrigerant (fluorinated greenhouse gas)R-513A
refrigerant charge0.19kg
Global warming potential GWP631
CO2 equivalent0.12t
Hermetically sealed refrigeration circuitYes
Technical changes reserved.
Standard equipment:
Air/air heat exchangerdefault
Electronically controlled condensate draindefault
Bulkhead fitting for external condensate hosedefault
Electrical equipment according to EN 60204-1default
Main switch with mains isolating devicedefault
Prepared for wall hangingdefault
machine feetdefault
Trend display pressure dew pointsdefault
Hot gas bypass regulatordefault
Options:
Potential-free contact "Pressure dew point warning"No
Electronic condensate drain Eco-Drain with pot. contactElectronic
The refrigeration circuit is designed for ambient temperatures of up to +50 °C. In addition, the high-quality refrigerant compressor and the large refrigerant condenser contribute to high availability. In addition, the precisely defined cooling air flow ensures reliable dissipation of waste heat. The integrated electronic condensate drain ECO DRAIN disposes of the accumulating condensate without loss of compressed air.
Pressure dew point +3 °C
The generously dimensioned heat exchanger system made of copper-soldered stainless steel plates with an energy-saving air-air heat exchanger ensures that the pressure dew point of +3 °C is reliably reached and maintained. The also integrated, specially adapted condensate separator ensures optimum separation even with fluctuating throughput. The very low differential pressure guarantees KAESER's typical energy-saving operation.
Compact industrial quality "Made in Germany"
Thanks to their small dimensions, KAESER KRYOSEC refrigeration dryers find a place anywhere. They impress with their low height and are equipped with a suspension device for wall mounting. The highest possible operating safety is ensured by e.g. B. the lockable, high-quality on/off switch with mains disconnection device according to EN 60204-1 (safety of machines), the bulkhead screw connection for connecting a condensate hose and the connection cable mounted strain-relieved via a PG screw connection on the dryer.
