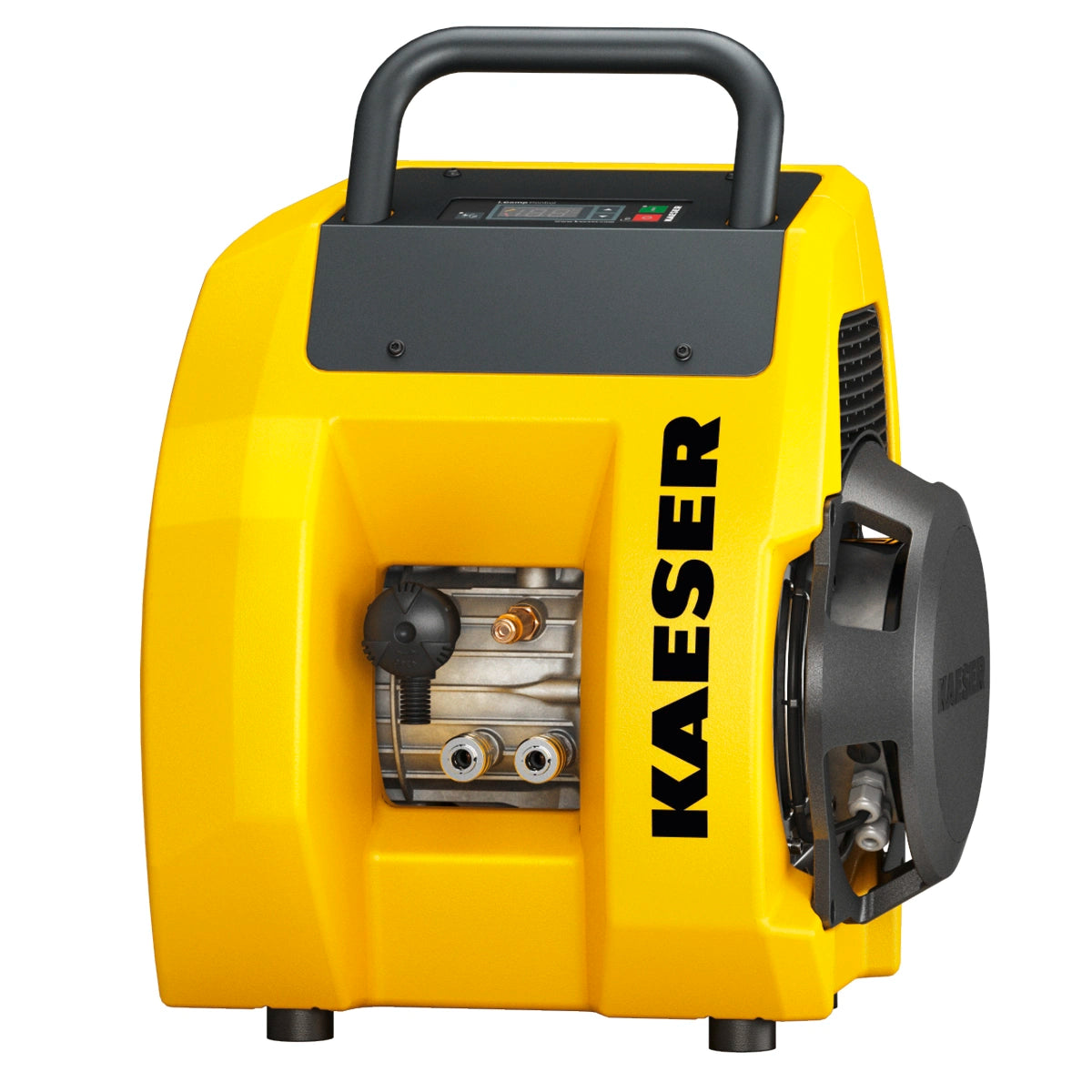

KAESER piston compressor type: i.Comp 3 portable
in craftsman quality
The Kaeser i.Comp 3 is a portable, oil-free piston compressor that is ideal for use on construction sites. With an output of 1.5 kW and a speed range of 1500-3200 rpm, the Kaeser i.Comp 3 always delivers exactly the amount of compressed air that is actually needed. Thanks to the new drive concept, the Kaeser i.Comp 3 individually supplies the compressed air that is requested or required to carry out the work. Another big advantage is that no compressed air tank is required, making the Kaeser i.Comp 3 lighter and more compact and therefore ideal for use on construction sites. First-class materials and careful workmanship ensure years of economical and reliable operation.
Technical data (volume flow and performance data according to ISO 1217:2009, Annex E)
- Volume flow at 6 bar, 3200 rpm 160 l/min
- Volume flow at 11 bar, 2700 rpm 117 l/min
- Max. overpressure 11 bar
- Speed range 1500-3200 rpm
- Rated power drive motor 1.5kW
- Drive motor protection class IP54
- Connected to the electricity grid 208-240V / 50-60Hz
- Sound pressure level 79dB(A)
- Sound power level 97dB(A)
- Ambient temperatures min./max. + 3°C / + 35°C
- Dimensions (width x depth x height) 490x340x600mm
- Dimensions 25kg
Technical changes reserved.
Type: Piston compressor Key product advantages of the KAESER piston compressor i.Comp
KAESER compressor block
The heart of the system, the compressor block, is manufactured in Germany at the KAESER factory in Coburg. Pistons, piston rings, connecting rods, bearings and crank flange are particularly robust. This guarantees quality and reliability.
Oil-free compressed air
The i.Comp supplies oil-free compressed air. This means there is no oil-contaminated condensate that needs to be disposed of. This protects the environment. Oil changes and oil checks are also no longer necessary, which results in low service costs overall. At the same time, the service life of the compressor increases.
Easy to transport
Thanks to its ergonomic design, the robust and reliable i.Comp is comfortable to carry and transport. Attachments are very well protected by the sound-absorbing cover made of special rotation-sintered polyethylene.
Can be used anywhere
The i.Comp can be used anywhere compressed air is needed. In the woodworking trade and car workshops as well as in all other craft sectors.
Integrated control
The integrated i.Comp Control enables pressure preselection and infinitely variable speed variations. Simply “enter” the pressure and off you go.
