item description
Materials:
Housing: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)
Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)
Operating pressure:
-0.95 to 35 bar
Flow***:
Standard: 1100 l/min, ball lock: 1850 l/min, ball lock & plastic sleeve: 2100 l/min (Each coupling in connection with locking coupling plug -BA: 800 l/min)
A notice:
Coupling plugs with valve for shut-off on both sides (-BA) can only be used with the special coupling sockets (-BA) provided for this purpose.
Compatible to**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German makes

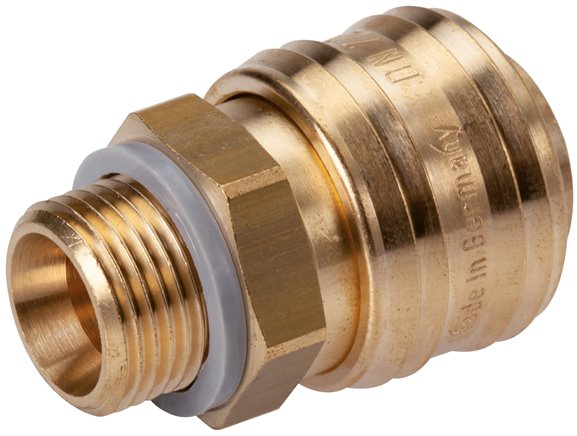

Characteristics
- material Brass
- thread outside 1/4"
- poetry NBR
- Can be used for plugs shutting off on both sides no
- execution default
- actual nominal size [mm] 7.2
- SW [mm] 22
- Temperature range [°C] -20 to +100
***6 bar inlet pressure, 0.5 bar pressure difference**Names and designations are partly registered trademarks of the respective manufacturers.*SW 22 with PTFE-coated G-thread
All information is to be understood as non-binding guideline values! For not confirmed in writing data selection, we assume no liability. Unless otherwise stated, pressure specifications relate to group II liquids at +20°C
