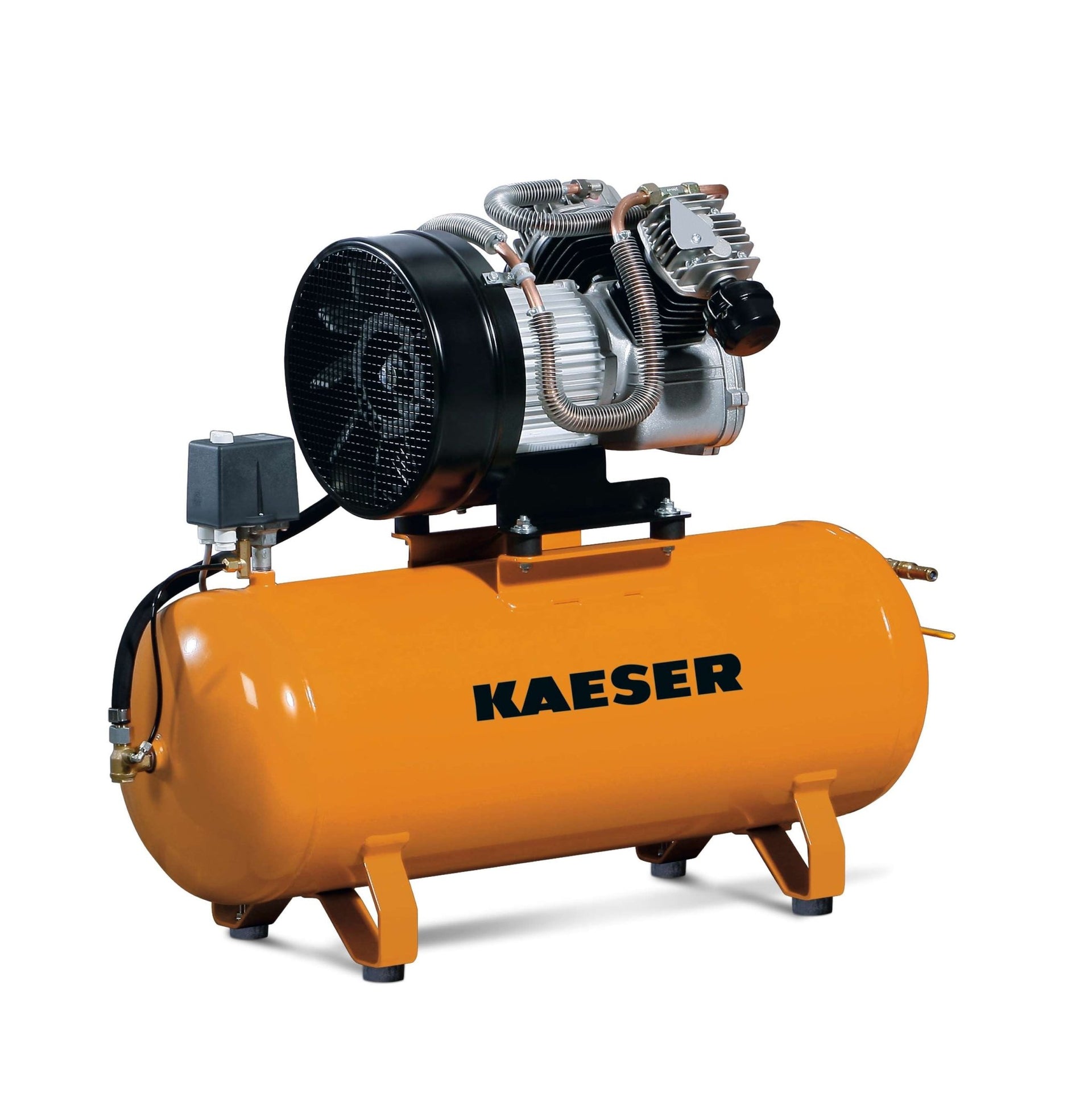

Name: Kaeser piston compressor EPC 440-100 400/3/50
Brand: Kaeser
SKU: 1.5753.6
Price: 2326.4 EUR
Availability: OutOfStock

Zoom

Kaeser Kolbenkompressor EPC 440-100 400/3/50 - Pillunat - 1.5753.6 - Kärcher Home & Garden - Kärcher Professional - Kaser Kompressoren

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist

Fragen zum Produkt?

Rufen Sie uns an unter 02202 / 58696
oder per Mail an info@pillunat.com

Pillunat vor Ort

Besuchen Sie uns an unserem Standort in Bergisch Gladbach

Produktinformationen

Lagerbestand Nicht verfügbar

Artikelnummer 1.5753.6

Hersteller Kaeser

Kaeser Kolbenkompressor EPC 440-100 - Pillunat - 1.5753.7 - Kärcher Home & Garden - Kärcher Professional - Kaser Kompressoren

Kaeser piston compressor EPC 440-100 2.199,99 €

Kaeser piston compressor EPC 630-100 400/3/50 3.150,00 €

Kaeser Kolbenkompressor EPC 630-100 400/3/50 - Pillunat - DEEPC630100 - Kärcher Home & Garden - Kärcher Professional - Kaser Kompressoren

Produktbeschreibung

piston compressor

Type: EPC 440-100 "lying" version

The robust ones for the trade

The following applies to KAESER-EUROCOMP piston compressors: the main components, the compressor block and the electric drive motor, are also "Made in Germany" in the highest craftsmanship quality. Users benefit from this quality with higher air performance and a longer service life, among other things. EUROCOMP compressors are designed - and built - for years of operation in tough workshop use!

Technical data (volume flow and performance data according to ISO 1217:2009, Annex C)

Flow rate at 6 bar 280 l/min
Flow rate at 8 bar 260 l/min
Max. overpressure 10 bar
Compressor block shaft power 2.4 kW
Synchronous nominal speed 1500 rpm
Protection class drive motor IP 54
Electrical supply 400 V / 3 Ph / 50 Hz
Number of cylinders 2
Volume pressure tank 90 l
Compressed air connection G 1/2
Sound pressure level 72 dB(A)
Dimensions (width x depth x height) 1130 x 500 x 860 mm
Mass 89 kg
Technical changes reserved.

Type: piston compressor

Decisive product advantages

of the KAESER piston compressor

KAESER compressor block

The heart, the compressor block, is manufactured in Germany at the KAESER factory in Coburg. Pistons, piston rings, connecting rods, bearings and crank flange are particularly robust. This guarantees quality and reliability.

Low compressed air temperatures

With numerous cooling fins, additional cooling pins in the compressed air outlet and a large fan wheel, the highly efficient cooling system of the EUROCOMP piston compressors keeps compressed air and oil temperatures low. This increases the availability and service life of the compressor and air tools. The special shape of the aluminum ring profile aftercooler (from 3 kW) also offers effective protection against accidental contact.

Corrosion-free stainless steel valves

The lift-limited valves have stainless steel valve tongues. This improves the heat dissipation and avoids the formation of oil carbon. The sealing behavior of the valves and their service life are also significantly extended in this way.

Maintenance-free transmission

Drive motor and compressor block are directly connected to each other. In this way, the driving force is transmitted without loss. Low speeds ensure greater efficiency and a longer service life for all moving components.
