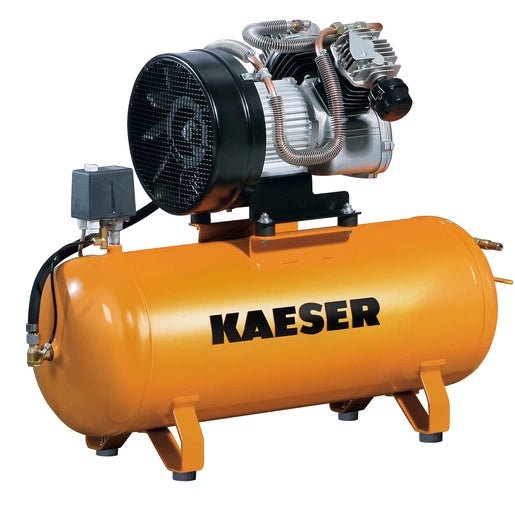

Name: Kaeser piston compressor EPC 840-100 400/3/50
Brand: Kaeser
SKU: DEEPC840100
Price: 4278.6 EUR
Availability: OutOfStock

Zoom

Kaeser Kolbenkompressor EPC 840-100 400/3/50 - Pillunat - DEEPC840100 - Kärcher Home & Garden - Kärcher Professional - Kaser Kompressoren

Hurry Up! Only 0 Left in Stock!

Out of stock

Add wishlist Delete wishlist

Fragen zum Produkt?

Rufen Sie uns an unter 02202 / 58696
oder per Mail an info@pillunat.com

Pillunat vor Ort

Besuchen Sie uns an unserem Standort in Bergisch Gladbach

Produktinformationen

Lagerbestand Nicht verfügbar

Artikelnummer DEEPC840100

Hersteller Kaeser

Kaeser Kolbenkompressor EPC 630-250 St "stehende" Ausführung - Pillunat - 1.5015.5 - Kärcher Home & Garden - Kärcher Professional - Kaser Kompressoren

Kaeser piston compressor EPC 630-250 St "upright" version 3.611,04 €

Kaeser piston compressor EPC 840-250 St 400/3/50 4.738,80 €

Kaeser Kolbenkompressor EPC 840-250 St 400/3/50 - Pillunat - DEEPC840250ST - Kärcher Home & Garden - Kärcher Professional - Kaser Kompressoren

Produktbeschreibung

piston compressor

Type: EPC 840-100 "lying" version

The robust ones for the trade

The following applies to KAESER-EUROCOMP piston compressors: the main components, the compressor block and the electric drive motor, are also "Made in Germany" with the highest quality craftsmanship. Users benefit from this quality with higher air performance and a longer service life, among other things. EUROCOMP compressors are designed - and built - for years of operation in tough workshop use!

Technical data (volume flow and performance data according to ISO 1217:2009, Annex C)

Flow rate at 6 bar	590 l/min
Flow rate at 8 bar	530 l/min
Max overpressure	10 bars
Compressor block shaft power	4.0kW
synchronous rated speed	1500 rpm
Degree of protection drive motor	IP54
Connected to the electricity grid	400V / 3ph / 50Hz
number of cylinders	2
Volume pressure vessel	90L
Compressed air connection	G 1/2
sound pressure level	77dB(A)
Dimensions (width x depth x height)	1150x600x960mm
Dimensions	100kg

Technical changes reserved.

Decisive product advantages

of the KAESER piston compressor

KAESER compressor block

The heart, the compressor block, is manufactured in Germany at the KAESER factory in Coburg. Pistons, piston rings, connecting rods, bearings and crank flange are particularly robust. This guarantees quality and reliability.

Low compressed air temperatures

With numerous cooling fins, additional cooling pins in the compressed air outlet and a large fan wheel, the highly efficient cooling system of the EUROCOMP piston compressors keeps compressed air and oil temperatures low. This increases the availability and service life of the compressor and air tools. The special shape of the aluminum ring profile aftercooler (from 3 kW) also offers effective protection against accidental contact.

Corrosion-free stainless steel valves

The lift-limited valves have stainless steel valve tongues. This improves the heat dissipation and avoids the formation of oil carbon. The sealing behavior of the valves and their service life are also significantly extended in this way.

Maintenance-free transmission

Drive motor and compressor block are directly connected to each other. In this way, the driving force is transmitted without loss. Low speeds ensure greater efficiency and a longer service life for all moving components.
