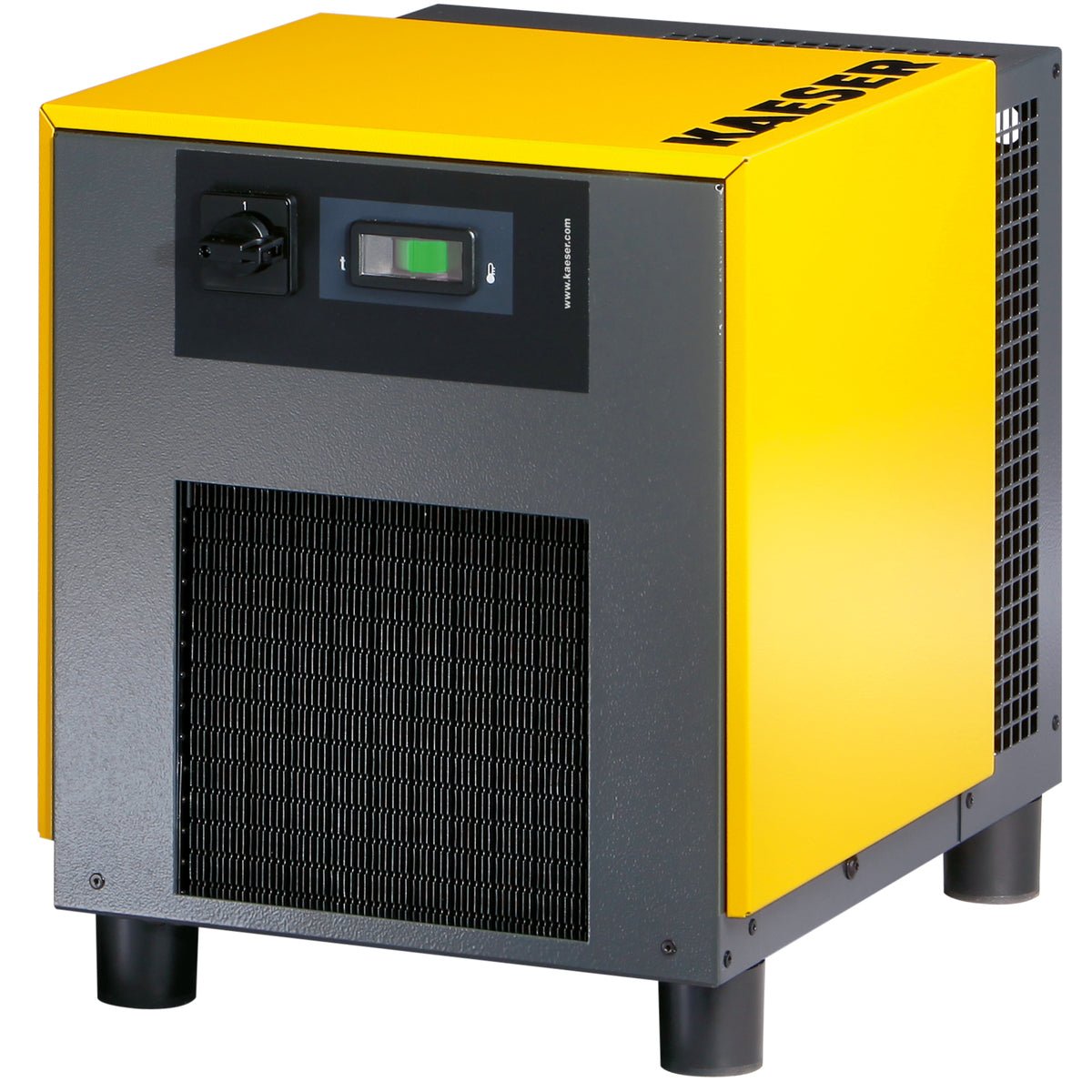

Refrigeration dryer KRYOSEC type: TCH 27
Refrigeration dryer with hot gas bypass control
The TCH 27 refrigeration dryer from the KRYOSEC series works reliably even at high ambient temperatures. The reason for this is the coherent design of the refrigeration cycle. Other important properties of the refrigeration dryer are: high flow security, electronic condensate drain, stainless steel plate heat exchanger system with air/air heat exchanger and efficient condensate separator, and a low overall height. Made in Germany.
Technical data (data under reference conditions according to ISO 7183 option A1: ambient temperature +25 °C, cooling medium inlet temperature +25 °C, compressed air inlet temperature +35 °C, pressure dew point +3 °C, operating pressure 7 bar; max. height of the installation site above sea level: 1000 m; the performance data will change under other operating conditions)
- flow rate 2.60 m³/min
- Electrical power consumption at 100% volume flow 0.51kW
- pressure dew point 3°C
- Pressure loss refrigeration dryer 0.18 bars
- overpressure (min./max.) 3.0 bar / 16.0 bar
- Ambient temperature min./max. 3℃/50℃
- Compressed air connection g 1
- Condensate drain connection G 1/4
- Connected to the electricity grid 230V / 1 / 50Hz
- Dimensions (W x D x H) 640mm x 663mm x 609mm
- Dimensions 56kg
- Refrigerant (fluorinated greenhouse gas) R-513A
- refrigerant charge 0.62kg
- Global warming potential GWP 631
- CO2 equivalent 0.39t
- Hermetically sealed refrigeration circuit No
Technical changes reserved.
Standard equipment:
- Air/air heat exchanger default
- Electronically controlled condensate drain default
- Bulkhead fitting for external condensate hose default
- Electrical equipment according to EN 60204-1 default
- Main switch with mains isolating device default
- machine feet default
- Trend display pressure dew points default
- Hot gas bypass regulator default
Options:
- Potential-free contact "Pressure dew point warning" No
- Electronic condensate drain Eco-Drain with pot. contact Electronic
Type: KRYOSEC refrigeration dryer Key product benefits
High operational reliability
The refrigeration circuit is designed for ambient temperatures of up to +50 °C. In addition, the high-quality refrigerant compressor and the large refrigerant condenser contribute to high availability. In addition, the precisely defined cooling air flow ensures reliable dissipation of waste heat. The integrated electronic condensate drain ECO DRAIN disposes of the accumulating condensate without pressure losses.
Pressure dew point +3 °C
The generously dimensioned heat exchanger system made of copper-soldered stainless steel plates with an energy-saving air-air heat exchanger ensures that the pressure dew point of +3 °C is reliably reached and maintained. The also integrated, specially adapted condensate separator ensures optimum separation even with fluctuating throughput. The very low differential pressure guarantees KAESER's typical energy-saving operation.
Compact industrial quality "Made in Germany"
The highest possible operating safety is ensured by e.g. B. the lockable, high-quality on/off switch with mains disconnection device according to EN 60204-1 (safety of machines), the bulkhead screw connection for connecting a condensate hose and the connection cable mounted strain-relieved via a PG screw connection on the dryer.
